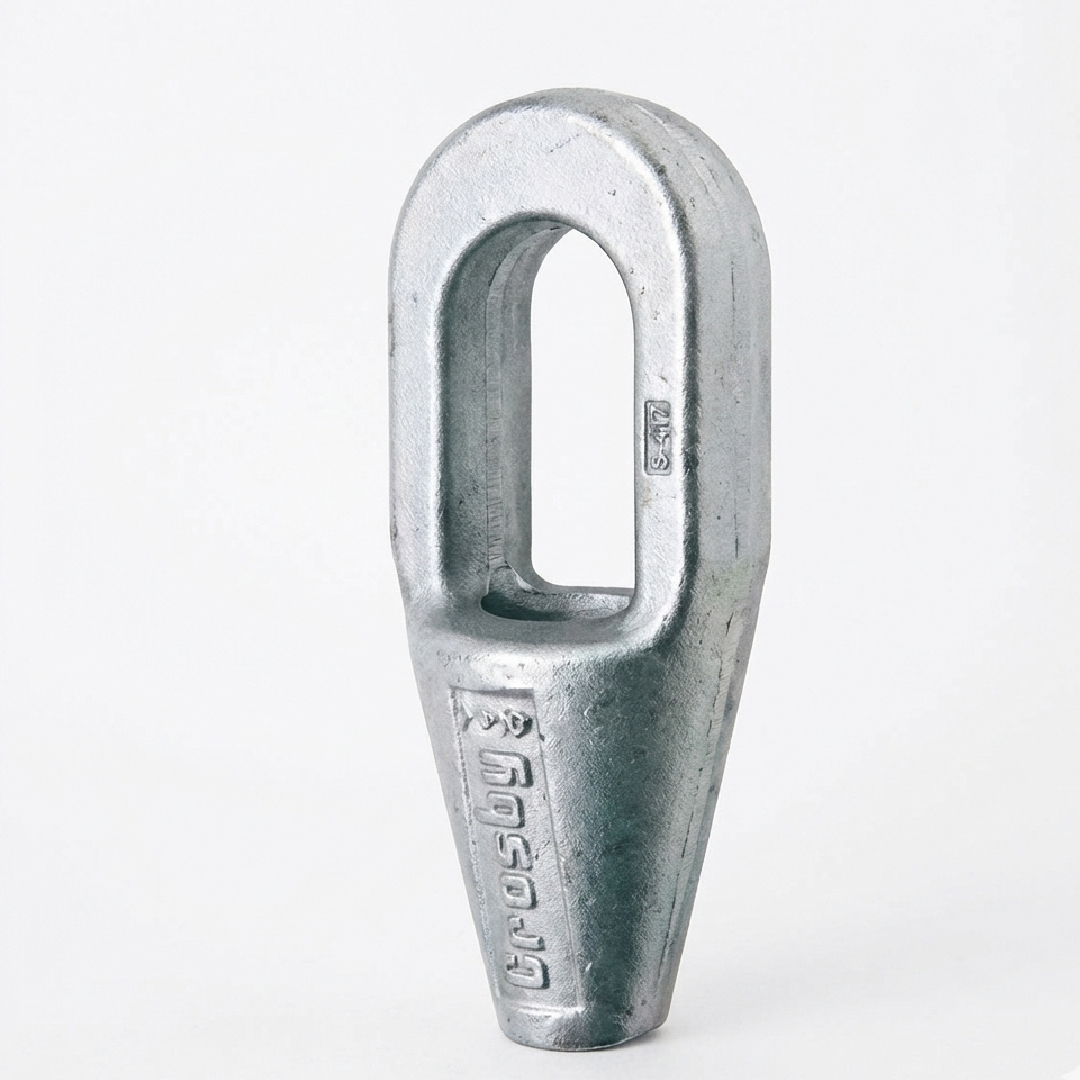

Crosby Closed Spelter Sockets offer 100% termination efficiency and superior durability with forged and cast alloy steel construction for high-strength lifting.
Crosby Closed Spelter Sockets are premium wire rope terminations designed for high-strength applications where 100% efficiency of the rope's breaking strength is required. The socket baskets are engineered to accommodate specific wire rope constructions, ensuring a reliable bond when speltered properly.
Constructed from forged steel for smaller sizes (through 38 mm) and cast alloy steel for larger sizes (40mm through 102mm), these sockets offer superior structural integrity. The design features a closed body (eye) for secure connection to other rigging hardware.
Standards Complied:
Federal Specification RR-S-550F (Type B performance requirements)
ASME B30.26 (Rigging Hardware)
Available in standard and heavy-lift configurations:
Rope Diameter Range: 5/16" (8 mm) to 4" (102 mm).
Ultimate Load: Ratings from 12 tonnes up to 1005 tonnes.
Wire Rope Compatibility: Designed for use with 6 x 7, 6 x 19, or 6 x 37 IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire ropes
Spelter socket terminations are rated for 100% efficiency based on the catalog strength of the wire rope.
Forged steel is used for sockets up to 38mm, while larger sockets (40mm+) use robust cast alloy steel.
All cast steel sockets (40mm and larger) undergo magnetic particle inspection and ultrasonic inspection to ensure quality.
Proof testing is available on special order for critical applications.
Closed Grooved Sockets meet the performance requirements of Federal Specification RR-S-550F, Type B.
